1100W Stainless Steel Submersible Pump 1.5Hp 3.8" Deep Well Pump Garden Water Pump

<p>1100W Stainless Steel Submersible Pump 1.5Hp 3.8" Deep Well Pump Garden Water Pump</p> <p> </p> <p>Instead of reflecting on the way you pump, switch to a high-quality easy-to-operate submersible well pump. This submersible well pump is made of selected stainless steel with a fine texture that is not easily deformed. Once installed, just simply insert it into the water and it will pump water quickly. It uses superb horsepower (1.5hp) allowing you to enjoy the high flow and high efficiency. With it, you will find that pumping water becomes so fun and easy!</p> <p></p> <p> </p> <p>Specification </p> <p> </p> <p>Model: 3SDM3/9</p> <p> </p> <p>Color: Silver</p> <p> </p> <p>Style: Submersible</p> <p> </p> <p>Material: Stainless Steel</p> <p> </p> <p>Power Source: Electric Powered</p> <p> </p> <p>Noise: ＜65db</p> <p> </p> <p>Applicable Well Diameter:＞10.16cm/4 inches</p> <p> </p> <p>Voltage: 110V/60Hz</p> <p> </p> <p>Power: 1.5HP /1.1KW</p> <p> </p> <p>Max. Lift: 90 m / 295 ft</p> <p> </p> <p>Max. Flow Rate: 5.6 m³/h 24 GPM</p> <p> </p> <p>Max. Speed: 3420r/min </p> <p> </p> <p>Outlet: 3.18cm/1.25 inch</p> <p> </p> <p>Flat Blue Cable: 10m (33ft)</p> <p> </p> <p>Number of Impellers: 9</p> <p> </p> <p>Plug Type: US Plug</p> <p> </p> <p>Package Size: 111*12*20cm/43.7*4.72*7.87inch</p> <p> </p> <p>Product Height: 81cm/32inch</p> <p> </p> <p>OD Pipe: 9.8cm/3.8 inch</p> <p> </p> <p>Gross Weight: 16.95kg/37.37lbs</p> <p> </p> <p>Each Net Weight: 15.95kg/35.16lbs</p> <p></p> <p> </p> <p>Package Included</p> <p> </p> <p>1*Submersible Well Pump</p> <p> </p> <p>1*Control Box</p> <p> </p> <p>1*Outlet</p> <p> </p> <p>1*English Manual</p> <p></p> <p> </p> <p>Key Features</p> <p> </p> <p>Heavy-duty Thermoplastic Impeller: The heavy-duty thermoplastic impeller is designed to provide high flow and high lift.</p> <p> </p> <p>Double Lifting Eye Hole: It adopts the design of double lifting eye hole position, which is convenient to use with steel wire rope or nylon rope when going down the well.</p> <p> </p> <p>Pagoda-shape Water Outlet: The water outlet adopts pagoda design, which is convenient for connecting pipes, saving time and labor.</p> <p> </p> <p>Snap Ring Spring: Stainless steel base adopts high precision steel snap ring spring, which is effective against compression, impact and deformation.</p> <p> </p> <p>High Toughness Oil Seal: It adopts high toughness oil seal to protect the stable operation of the motor in the high water pressure environment.</p> <p> </p> <p>Notes</p> <p> </p> <p>1. Please confirm whether the voltage and frequency meet the local standard before ordering. And note that it is forbidden to use in the absence of water.</p> <p> </p> <p>2. Please note that the pumping speed is related to the depth of water intake. The deeper the water intake, the lower the speed will be.</p> <p> </p> <p>3. Please note that the pump has a built-in check valve, however, this check valve is only used to prevent water from flowing back into the pump and causing the impeller to rotate in the opposite direction, but if the pump is to be used in the pressure system, at least one external check valve needs to be used in the pipeline.</p> <p> </p> <p>4. Please note that it is forbidden to touch the electric pump when it is working. Please do not wash, swim or enter the water of livestock nearby to avoid electric shock. To prevent electric shock, it is strictly prohibited to lift and pull the cable. Please cut off the power supply when maintaining, moving or cleaning the electric pump.</p> <p> </p> <p>5. Please read the user manual carefully before use and pay special attention to the safety precautions included.</p>

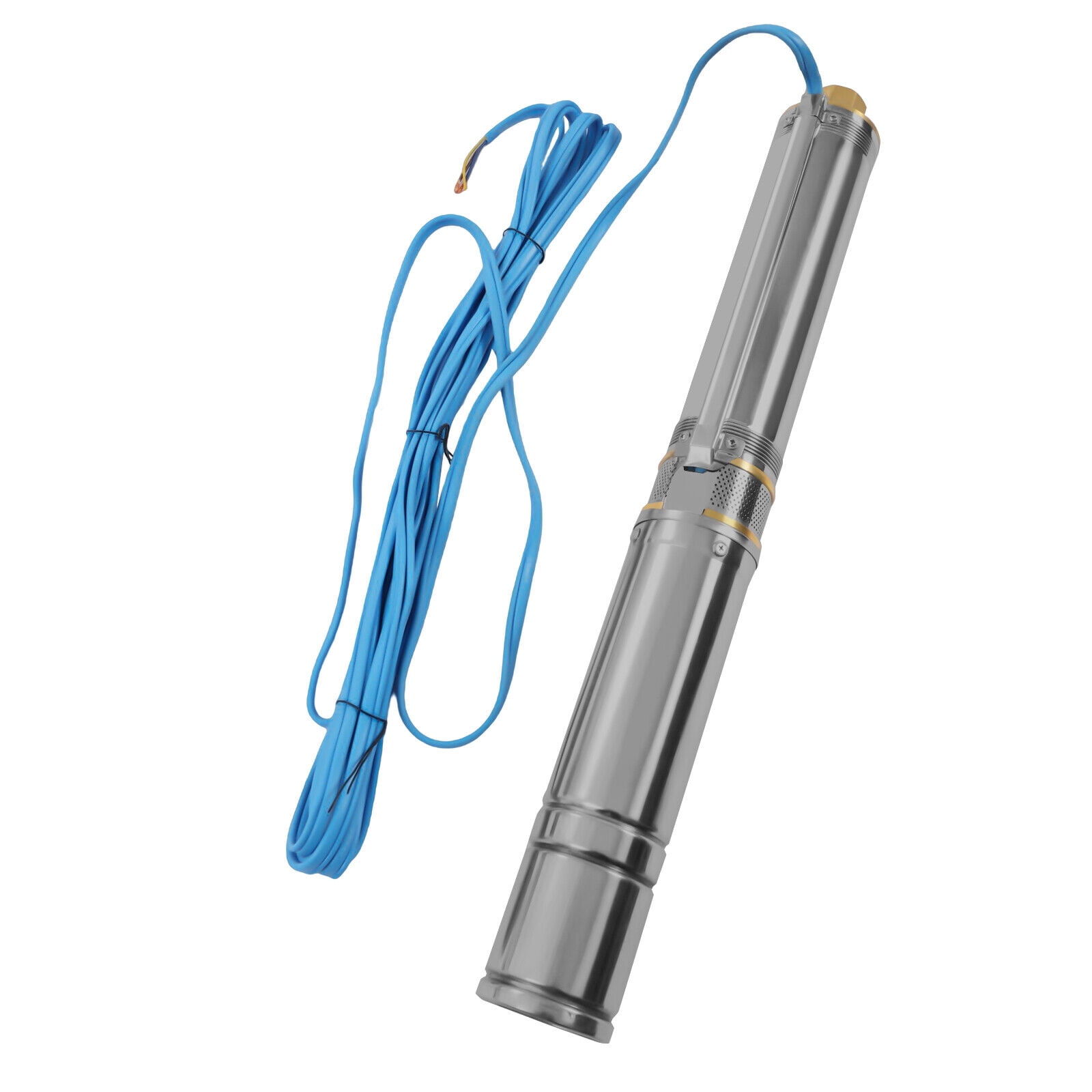

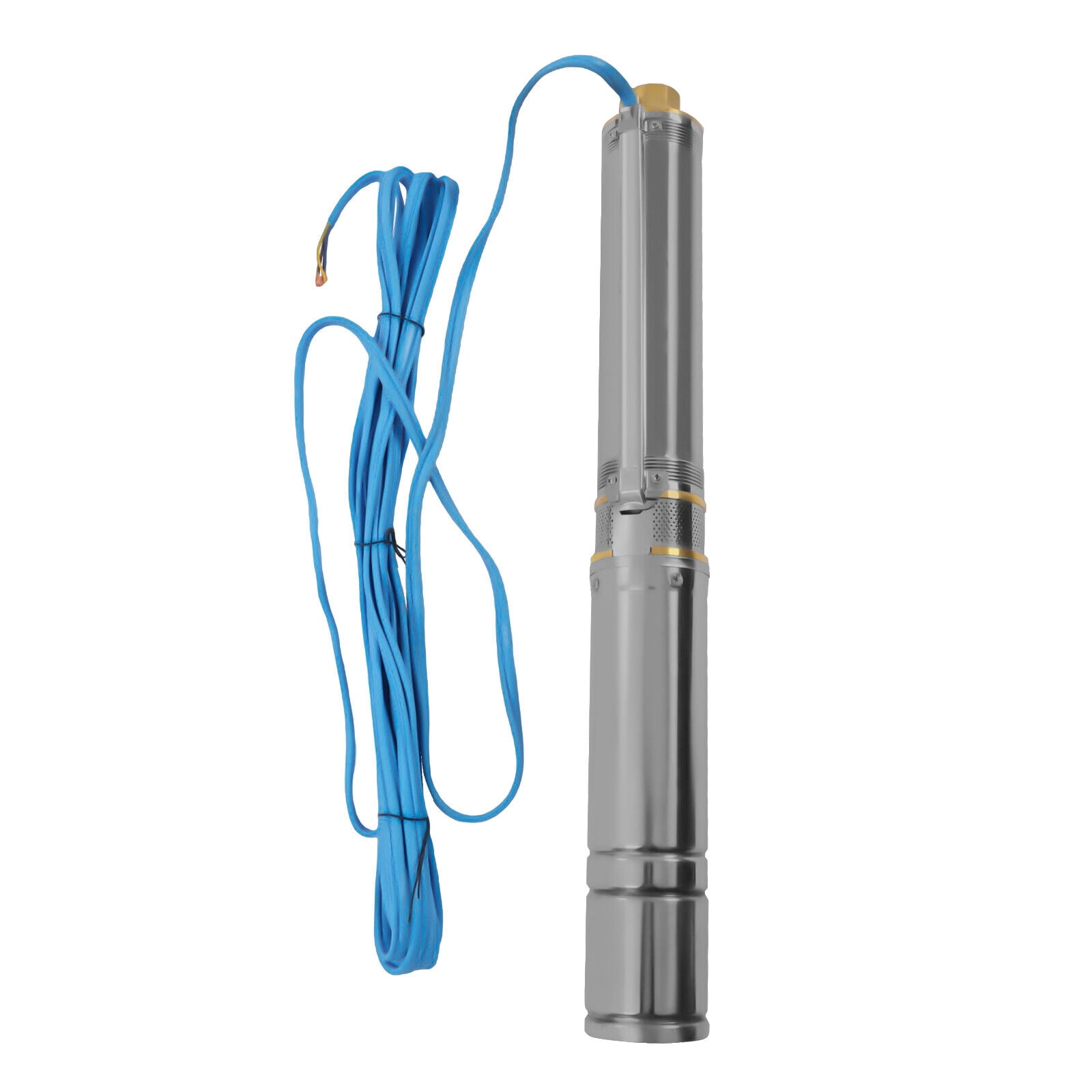

• Large Range Pumping: This submersible well pump comes with a 33ft cable that combines the motor and the pump into one, and it dives deep into the water to work. It can pump groundwater up to 295ft deep and can help you with many pumping jobs.
• Selected Material: The casing and motor shaft of this submersible well pump are made of stainless steel. The pump wall is thickened so that it does not deform easily. It keeps the water source clean and can be used for a long time.
• High Efficiency: It uses precision bearings with a high-quality motor, which makes it pump water at 3420r/min, so you can pump a lot of water in a short time.
• Good Performance: It uses high-quality sealed ball bearings, a heavy-duty thermoplastic impeller, a diffuser, and a filter mesh. In addition to that, it has efficient thermal protection against overheating for longer life and a more powerful start-up.
• Easy to Operate: You only need to put the deep pump into the well water and then plug it in to pump out the water, which is very easy to operate. Even if you are a novice, you don't have to worry because we have a detailed manual to teach you how to operate it.
• Application:It is applicable to wells with a diameter of more than 4in. It is suitable for extracting groundwater from deep wells, and can also be used for water-lifting projects in rivers, reservoirs, canals, etc. It is mainly used for irrigation of farmland and water for people and animals in mountainous areas, and can also be used for drainage of cities, factories, railroads and mines.
• Easy to Install/Storage: This is a simple structured submersible well pump that only requires you to overlap and rotate the two ends to assemble it together. It can also be easily disassembled, so it is easy to store.
• Low Noise Operation: It is made of a high-quality copper motor so it produces less than 65db noise during operation. In addition, the diving operation also creates a quiet environment and reduces its noise.

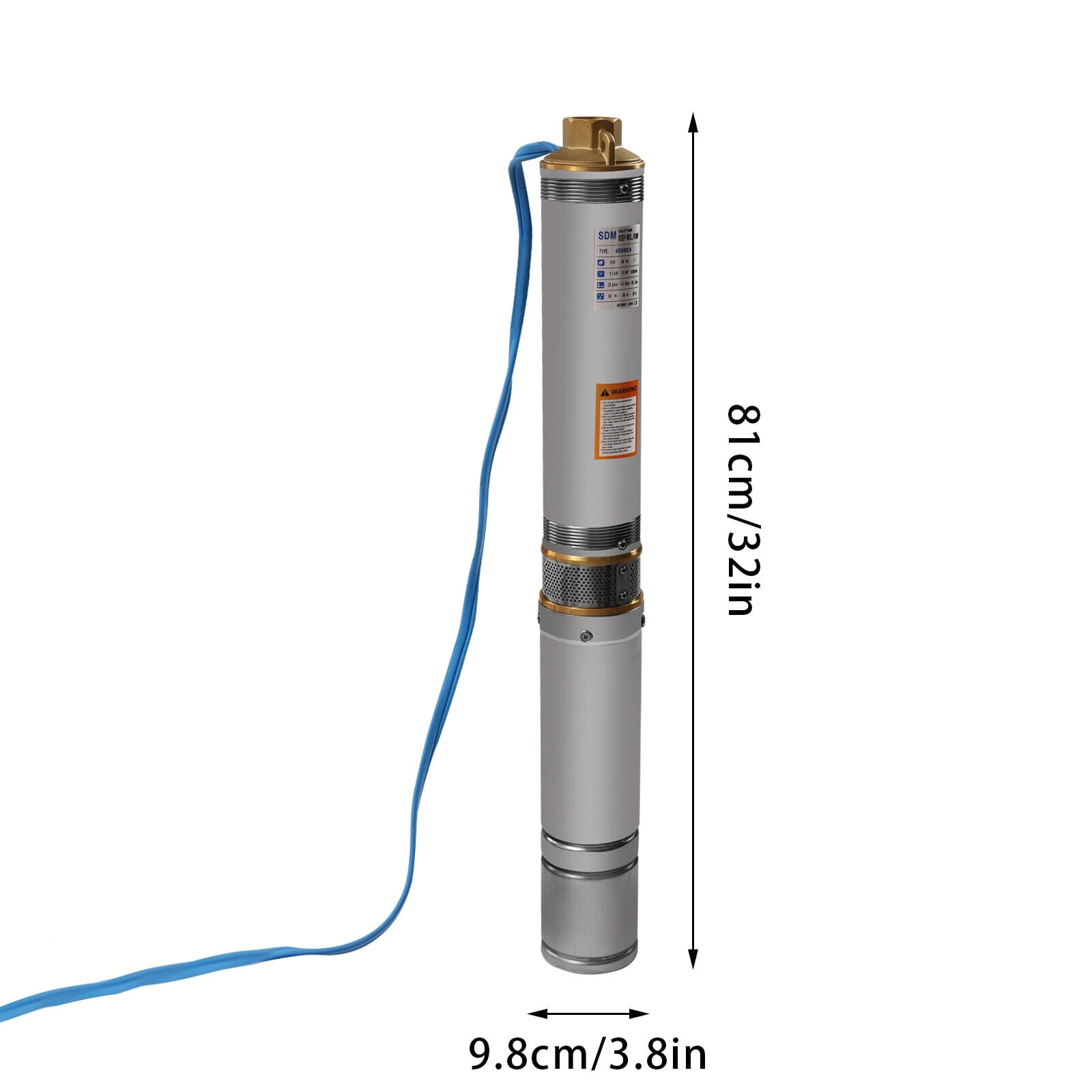

• Small Footprint: This submersible well pump is only 32inch long and 3.8inch in diameter. It is a good replacement for the traditional large submersible well pumps, making it easier for you to use and carry.

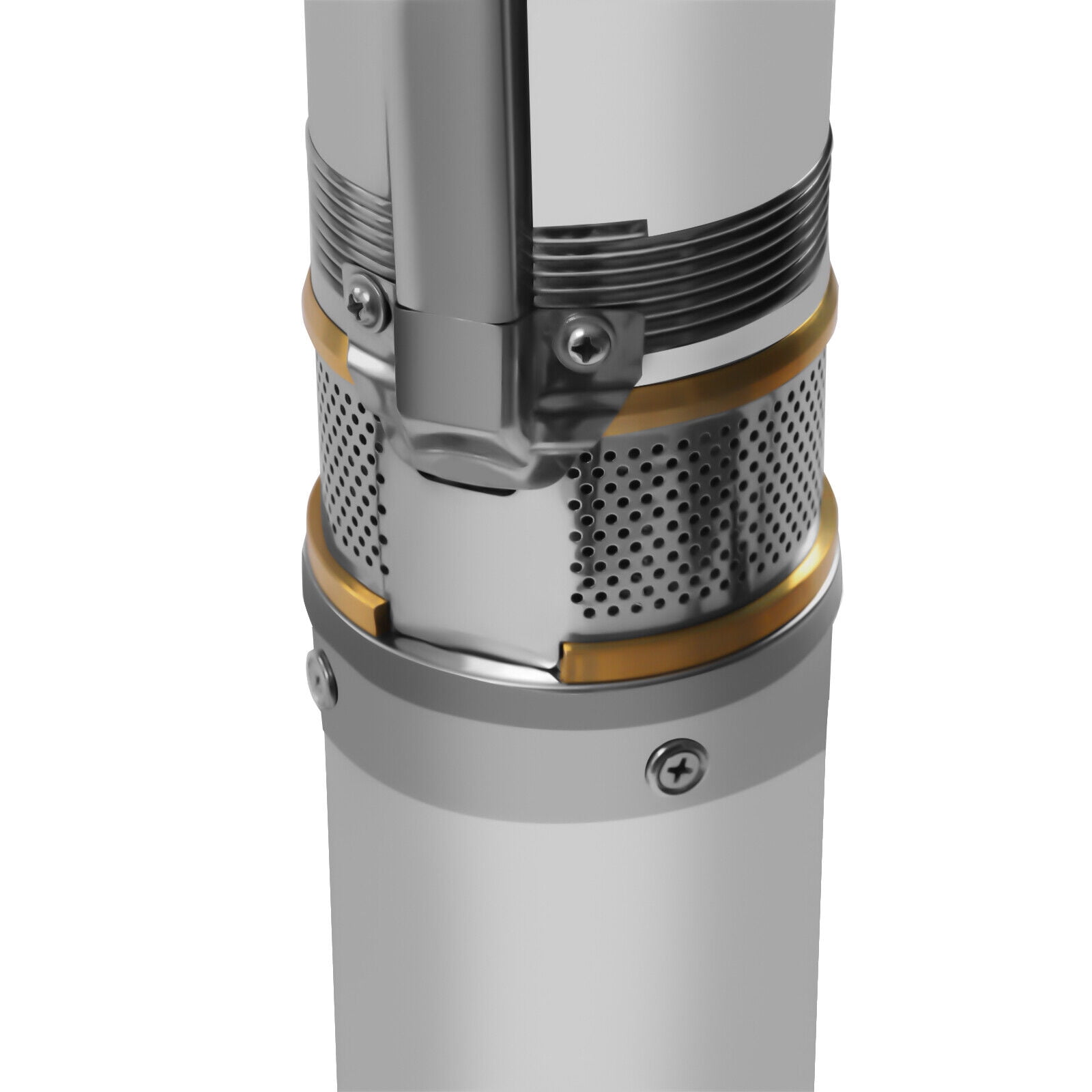

• Advanced Filter: The submersible pump comes with a stainless steel filter to filter impurities. For newly drilled wells with excessive granular sediment, you can add a layer of gauze before the filter inlet.

• Built-in Check Valve: This submersible well pump has a built-in check valve that can be installed vertically, preventing water from going back into the pump and causing a backspin of the impellers.
